Twin Sails Bridge

  • World's first triangular-leaf lifting bridge

Twin Sails Bridge open to shipping. Image: Jeff Owen

Twin Sails Bridge is a novel steel bascule road bridge that spans a navigation channel linking Holes bay with Poole Harbour in the UK. The bridge provides a second road link connecting Poole town centre with Hamworthy - a site of planned redevelopment. Ramboll worked closely with architect Wilkinson Eyre and mechanical engineer Bennett Associates to develop the bridge concept and used LUSAS Bridge analysis software to assist with its design of the crossing.


Twin Sails Bridge is the world’s first triangular-leaf lifting bridge and was constructed by HOCHTIEF (UK) Construction Ltd. The bridge has an overall length of approximately 139m which includes a central opening span of 23.4m between main bearings and two approach spans of approximately 27m. Its 10.8m wide carriageway incorporates two vehicular lanes segregated from two cycle lanes. In addition, two 2.5m wide footways cantilever either side of the bridge. The twin sail-like structures forming the lifting leaves weigh 65 tonnes each. Each leaf is connected to pivot bearings at one of the main piers and rests on a single bearing near the apex of the triangle on the other main pier. To permit the unrestricted passage of shipping the lift spans are pivoted through 88 degrees by two hydraulic rams to provide a clear channel width of 19m between the faces of fenders of the main piers when in the open position.

The bridge opened to traffic on 4th April 2012 and operates alongside the existing Poole Bridge, with one of the bridges always open for vehicular traffic when the other is open for shipping.

Twin Sails Bridge closed to shipping. Image: Jeff Owen

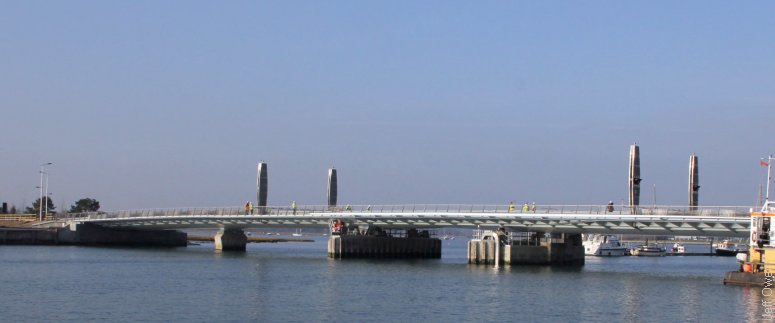

When closed to shipping the bridge looks quite unassuming.


Twin Sails Bridge lifting in progress. Image: Tanya Hart

Twin Sails Bridge fully raised. Image: Alex Martin

Raising the pair of 65 tonne lifting leaves takes
around two minutes

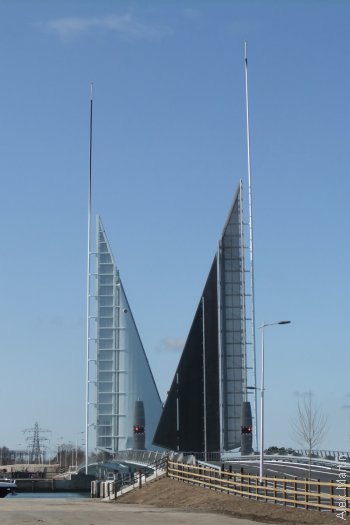

When fully raised the bridge creates the impression
of two passing yacht sails
